Home›Products›CAT6A Cable Engineering
Flagship capability

CAT6A Cable Engineering — 10G Ethernet, five shielding constructions, margin you can see.

Engineered for stable 10-Gigabit performance with 4–7 dB of margin above the standard, and every batch tested before dispatch.

All datasheets
Performance Evidence

Verified Margins Above Standard

Key parameters from CAT6A S/FTP production batches at 500 MHz.

NEXT
Standard
33.1 dB
Channeltech
38.2 dB
+5.1 dB
Insertion Loss
Standard
66.2 dB/100m
Channeltech
61.8 dB/100m
4.4 dB better
Return Loss
Standard
8.0 dB
Channeltech
12.4 dB
+4.4 dB
AXT
Standard
27.0 dB
Channeltech
33.6 dB
+6.6 dB

Full 8-parameter data and frequency sweep available in Technical Deep Dive below.

Engineering Approach

Why Channeltech CAT6A Is Different

Every manufacturer claims compliance. The difference is how margins are engineered, maintained across batches, and verified before shipment.

Pair Geometry for AXT

Optimised lay lengths and pair spacing control alien crosstalk without adding bulk, with impedance, NEXT and insertion loss held across every batch.

5 Shielding Configurations

S/FTP for maximum protection, F/UTP for balanced performance, U/FTP for pair isolation. Shield effectiveness validated across the full -20 to +60 C operating range.

Batch-Level Consistency

Conductor diameter, insulation eccentricity, and twist precision monitored at every manufacturing stage. Raw materials tested before production — not after cables are complete.

4-7 dB Above Standard

Margins above TIA/ISO requirements across NEXT, PSNEXT, RL, and AXT. Headroom ensures field certification passes even with real-world installation variables.

CAT6A Product Range

Complete Solutions Across Every Environment

Unshielded (UTP)

CAT6A U/UTP - AXT Compliant (3 options)
Slim CAT6A U/UTP (6.0mm)
Ideal for: Enterprise, campus, residential

Shielded (S/FTP)

CAT6A S/FTP
CAT6A F/FTP
CAT6A U/FTP
CAT6A SF/UTP
CAT6A F/UTP
Ideal for: Datacenter, automation, hospitals

Outdoor & Armoured

Double Jacket UV-resistant
Water-Blocking & Jelly Filled
ECCS / GI / SS / AL Armoured
Ideal for: Outdoor CCTV, towers, underground

Compatible with industry-standard RJ45 connecting hardware per ANSI/TIA-568.2-D. View all 8 product categories →

Inside the Cable

Explore Each Shielding Construction

Switch between constructions and tap any layer to see what it does.

Tap a layer in the drawing or the list
Pair foils

Each twisted pair individually foiled (U/FTP, S/FTP). The main defence against alien crosstalk between neighbouring cables in dense bundles.

CAT6A S/FTP: Individually foiled pairs plus an overall braid — the highest protection against external interference and the largest alien-crosstalk margin.

Not sure which one to specify?
Answer six questions and get a recommended construction and jacket.
Try the CAT6A selector
4000 km
Monthly CAT6A Capacity
3-4 wk
Standard Delivery
100%
Batch-Level Tested
For Engineering Teams

Technical Deep Dive

Detailed specifications, construction data, frequency profiles, and testing methodology.

CAT6A FAQ

Technical Questions Engineers Ask

What frequency range does Channeltech test CAT6A cables across?+
All CAT6A cables are tested across the full 1 MHz to 500 MHz frequency range per ANSI/TIA-568.2-D and ISO/IEC 11801-1:2017. Performance data is available at 1, 100, 250, 375, and 500 MHz — see the Technical Deep Dive above for complete frequency sweep profiles.
What is the AXT margin on Channeltech CAT6A S/FTP?+
+6.6 dB above the ANSI/TIA-568.2-D standard requirement at 500 MHz. It is measured on production S/FTP cable rather than a lab special. AXT compliance is achieved through optimised pair geometry at 7.2mm (U/UTP) and dual-layer shielding at 8.2mm (S/FTP).

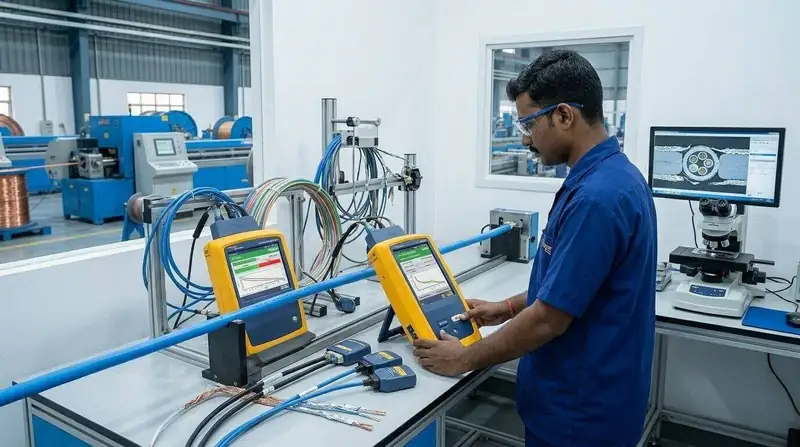

Is 100% of production tested or is it statistical sampling?+
100% of production is tested. Every reel undergoes automated NEXT, PSNEXT, IL, RL, ELFEXT, ACR-F and TCL testing, documented with a unique batch identifier. Alien crosstalk (AXT) is engineered in through pair geometry and shielding, and verified in qualification testing.
Does Channeltech offer CAT6A cables rated for fire environments?+
Yes. Channeltech manufactures Low-Smoke High-Temperature, Fire-Resistant (IEC 60331-1), and Flame-Retardant (IEC 60332-3-22) CAT6A cables. LSZH variants tested per IEC 61034 for smoke density are also available for critical infrastructure.
